DS-AD88 Mainboard

Product Features

  • Single double channel LVDS,EDP,HDMI,Maximum support of 3840*2160 decoding.
  • The built-in pci-e 3G module supports various pci-e 3G / 4G modules such as huawei, zte and longshang.
  • Rich extension interface. 5 USB ports (3 pins, 2 standard USB ports), 3 extendable serial ports, 1 I2C port, and 1 SPI
  • Support Android system customization, provide system call interface API reference code, perfect support for client application development.
  • Perfect support for infrared, capacitive touch and other mainstream touch screens, support the free - drive touch screen of HID configuration, no debugging.

DS-AD88 Mainboard, DS-PAD Mainboard

DS-AD88 is a high performance digital signage universal motherboard designed by anichips. The processor uses RK3288, integrated quad core cortex - a17, the highest frequency up to 1.8 GHz. Gpu uses Mali - T764, one of the most powerful graphics processors.The motherboard is also integrated with the rich extension interface, especially for various commercial scenes

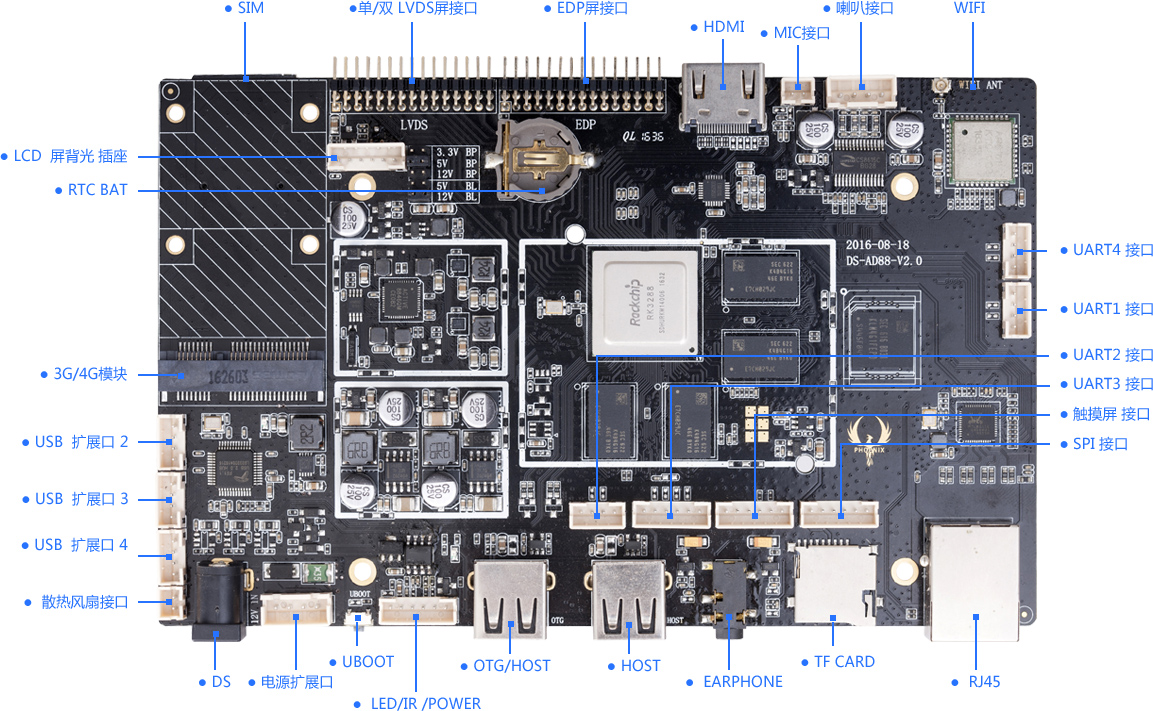

DS-AD88 Mainboard


DS-AD88 motherboard applications

It is applicable to interactive client, media broadcast, advertisement, information system, digital signage, intelligent device, smart medical, security, etc

DS-AD88 Mainboard, Application field


Main Hardware Indexes

MODEL DS-AD88
SIZE 160*100mm
OS Android 5.1 or up
CPU RK3288,qual Cortex-A17,up to 1.8 GHz
GPU MALI-T764
RAM Dual channel DRAM controller, 64 bits interface , 1GB/2GB (optional)
ROM EMMC 8GB/16GB/32GB(optional)
Network 3G/4G、ethernet、WiFi、 bluetooth
USB 1X OTG 4X USB HOST
Serial 3 serial port with TTL
Wireless Support WIFI,BT4.2
Mobile network Support 3G/4G
Ethernet 10M/100M/1000Mbit Ethernet support
External Storage/td>  Support TF card
LVDS Support single and dual channel LVDS interface
eDP Support
HDMI Support HDMI2.0,maximum output support 1080P@120Hz or 4kx2k@60Hz
Video decoding Support 3840*2160 decoding
Video format wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
Image format BMP、JPEG、PNG、GIF
Audio Support left and right channel,integrated with 8R/10W digital amplifier
RTC Support
Alarm support Support
Watchdog Support
IR Support
System upgrade Support TF,USB and OTA upgrade
